Android resizes-content keyboard safe-area sampler
Behavior

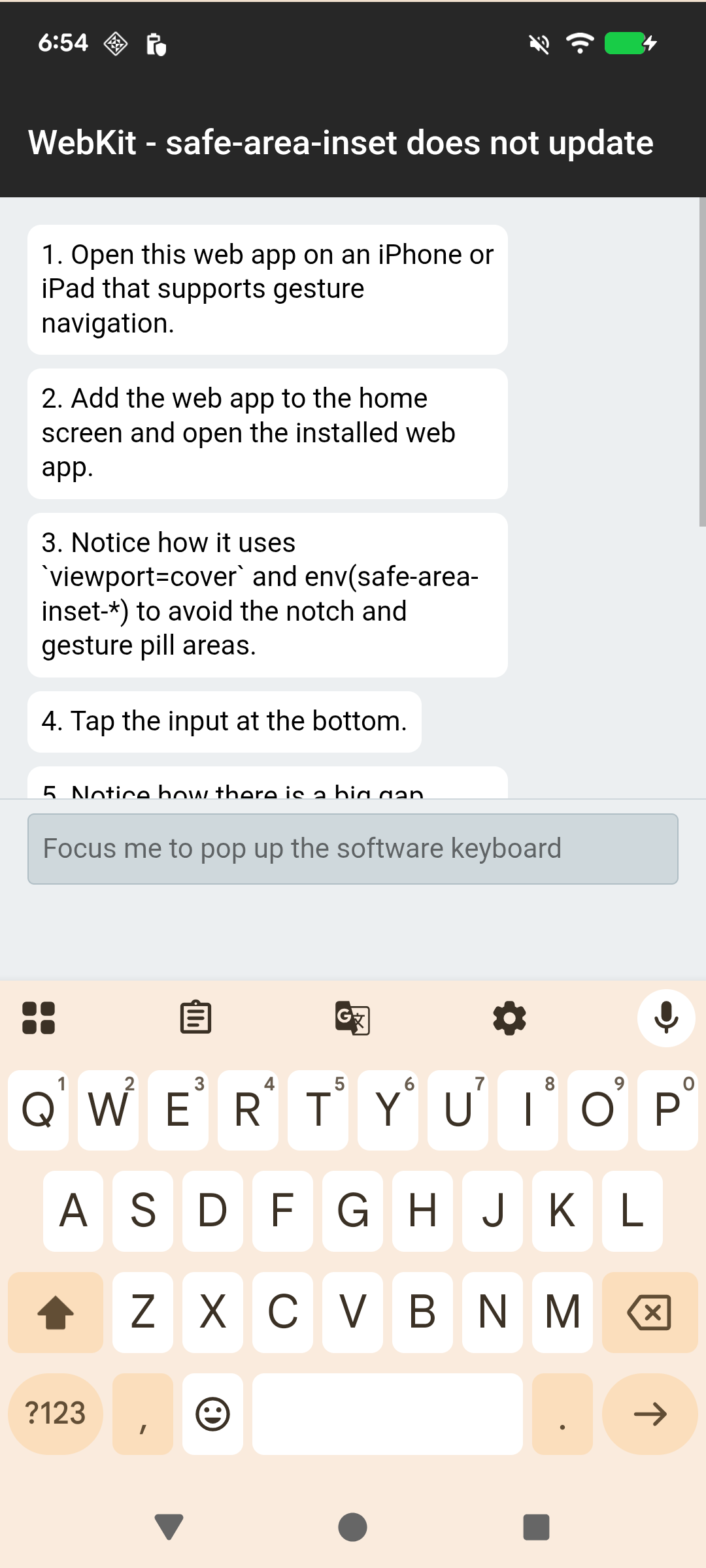

Baseline
A standalone edge-to-edge PWA using interactive-widget=resizes-content resizes its layout viewport for the IME, but retains the covered navigation-bar value in env(safe-area-inset-bottom). A fixed composer therefore receives duplicate bottom spacing.
Patched

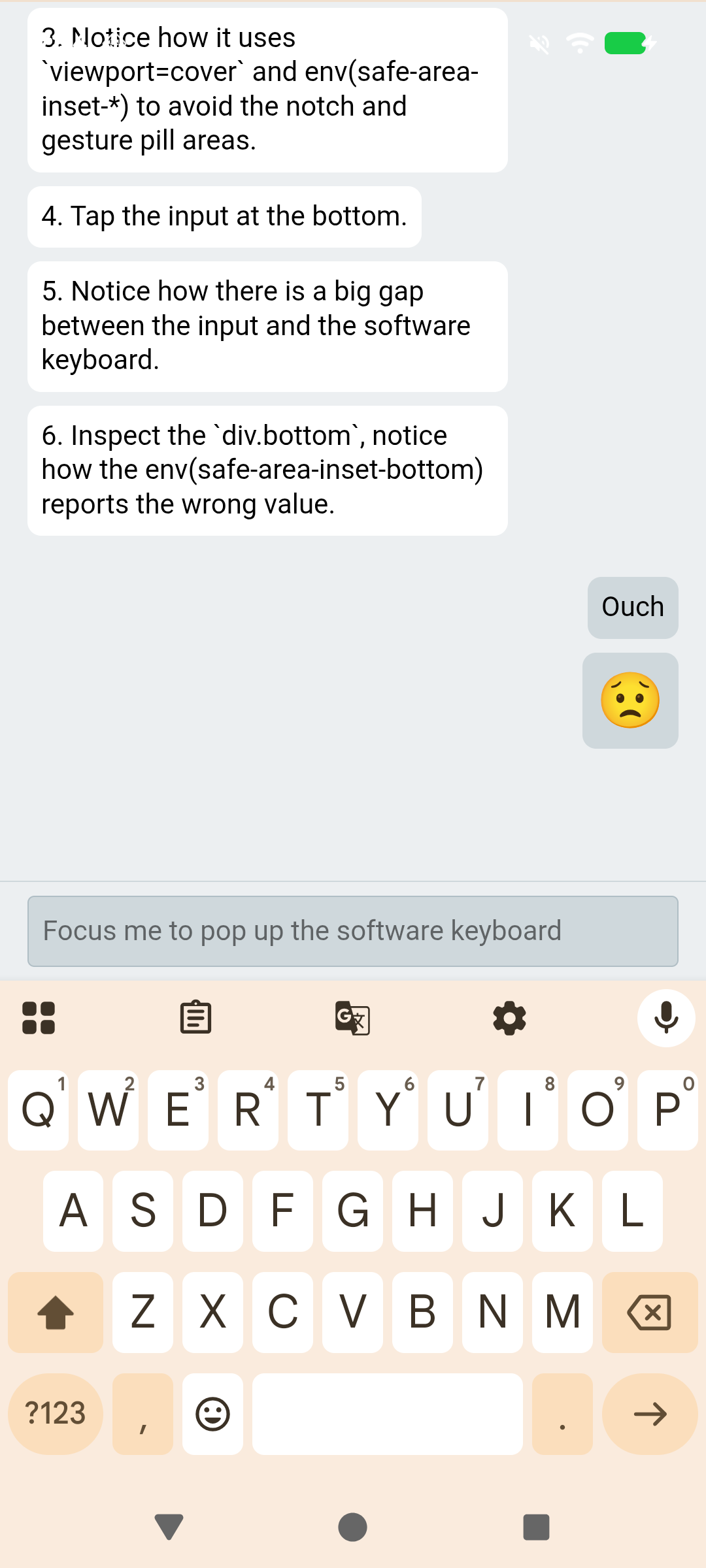

While a RESIZES_CONTENT keyboard is visible, Chromium excludes only the covered navigation bottom edge. Default RESIZES_VISUAL and OVERLAYS_CONTENT retain their navigation safe area.
Live sampler
Standalone PWA keyboard case

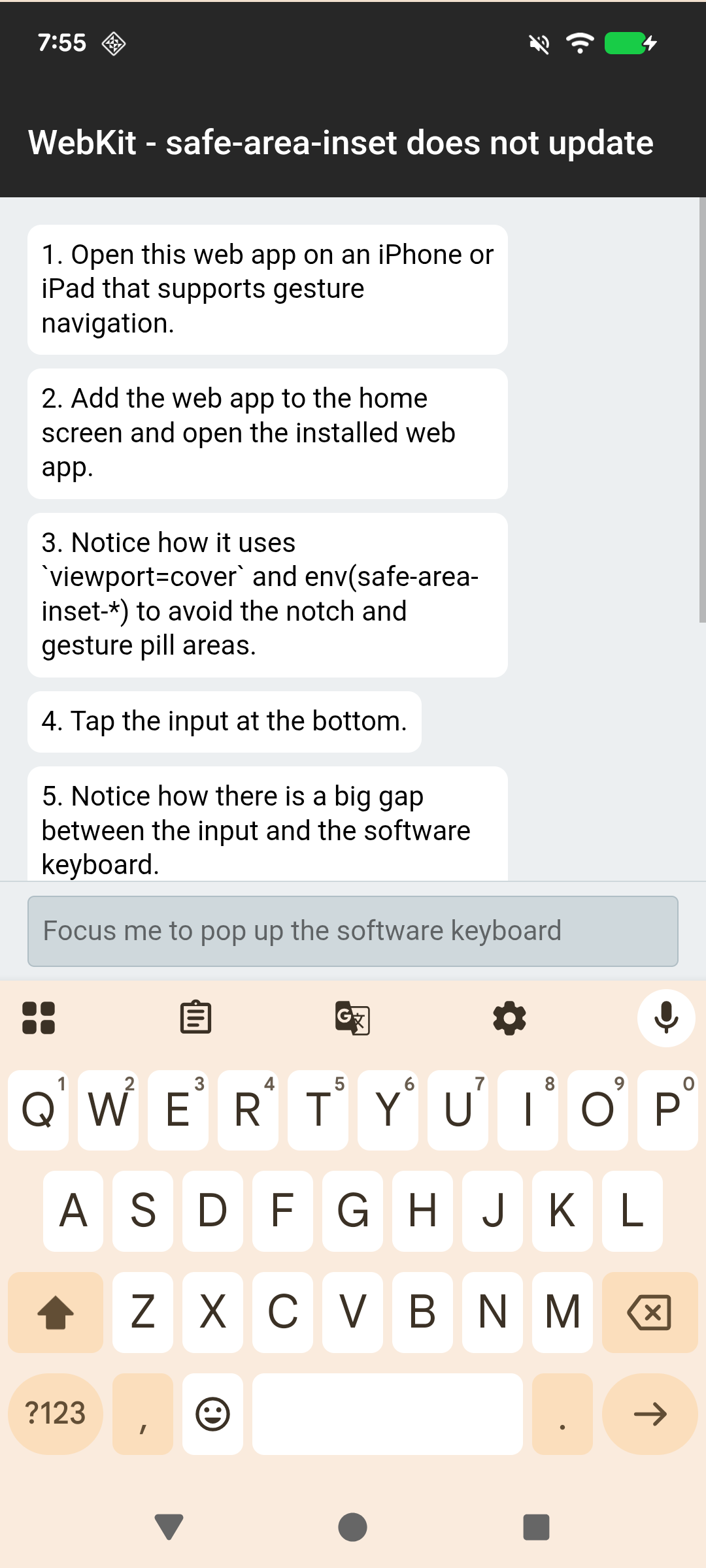

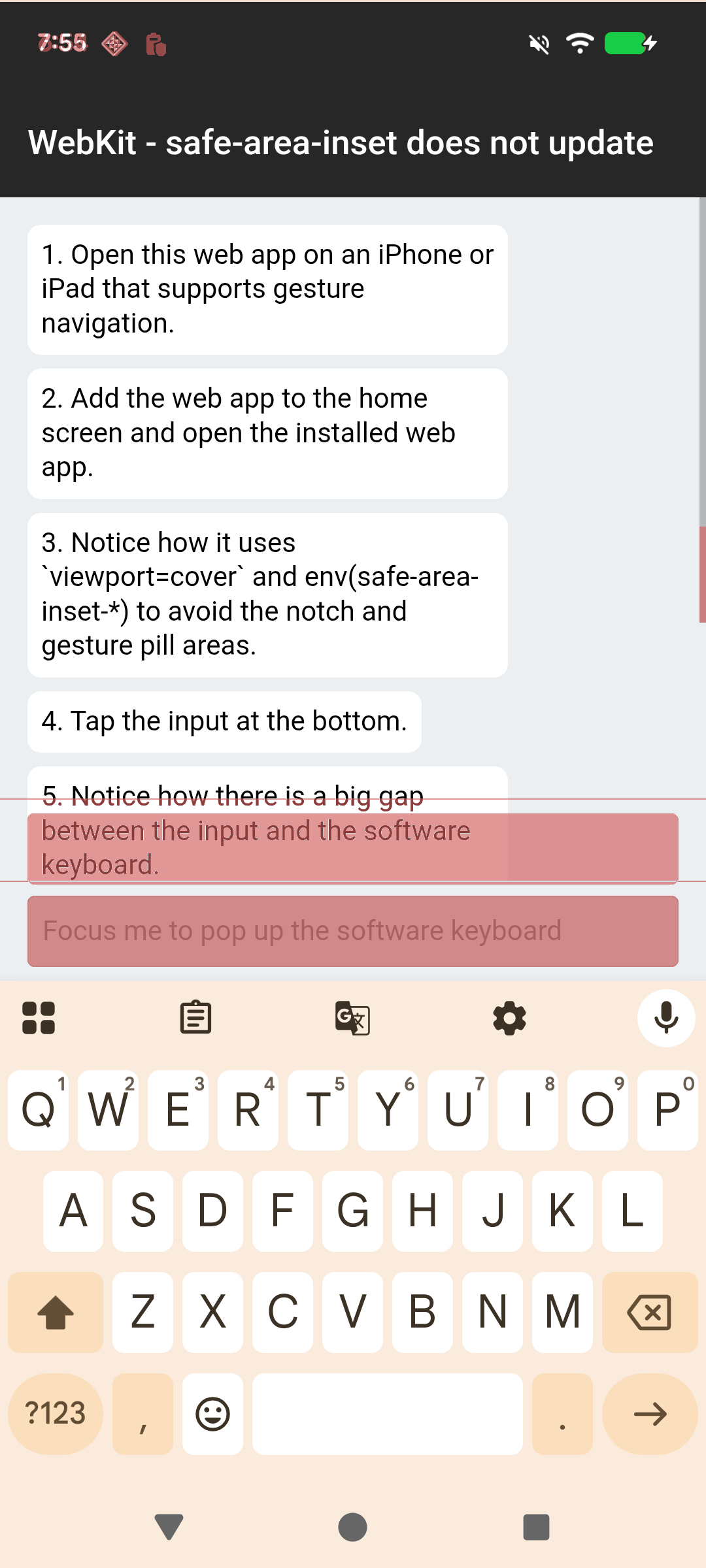

Install the live page as a PWA before testing. The Expected image is the patched Pixel 6a result. The Diff image marks changed pixels in red; status-bar time also differs between captures.
Measured result
Closed layout viewport914px
Open layout viewport572px
Baseline open safe bottom48px
Patched open safe bottom0px
Baseline total composer padding56px
Patched total composer padding8px
Focused JUnit result56 / 56 passed
APK downloads
Debug Chromium APKs built from commit 235bda9a2f16fdccd5c34fea06547477944f8537.
Device setup
adb install -r ChromePublic-e2e-keyboard-arm64.apk
adb shell am set-debug-app --persistent org.chromium.chrome
adb shell 'printf "%s\n" "_ --enable-features=WebAppShortEdgesCutoutMode" > /data/local/tmp/chrome-command-line'
# Open this URL in Chromium and install it as an app:
https://static.januschka.com/e2e-keyboard/repro.html- Launch the installed PWA with the keyboard closed. Safe bottom should protect the navigation bar.
- Focus the input. The page should report PASS, layout height should shrink, and safe bottom should become 0px.
- Dismiss and reopen the keyboard several times. Closed and open values should restore consistently.
Reproduce artifacts
python3 analyze_screenshots.py
