Wide multi-stop CSS gradient smearing
What this page demonstrates
CSS gradients with more than 128 color stops fall off Skia Ganesh's analytic uniform colorizer onto a 256-texel pre-rasterized bitmap fallback, which visibly smears the color bands at wide canvas widths.
A proposed patch adds a many-stop analytic colorizer in Ganesh that
mirrors Graphite's storage-buffer gradient path using existing texture
plumbing. The same code path is used by all CSS gradient types -- the
sampler below exercises linear-gradient,
radial-gradient and conic-gradient at 130
hard-stop segments.
1. Root cause
GrGradientShader::MakeColorizer →
make_looping_binary_colorizer caps at
kMaxLoopingColorCount = 128. Anything above falls to
make_textured_colorizer, which pre-rasterizes the gradient
into a 1 x 256 RGBA bitmap and bilinearly samples it. At
3800-px gradient widths each canvas pixel maps to ~0.067 of a texel, so
band boundaries get bilinearly smeared into 2-3-pixel-wide blends.
2. Linear -- 130 stops, 3801px width
linear-3801 -- background-size: 3801px, 130-stop hard-stop pattern
3. Linear -- 130 stops, 3800px width
linear-3800 -- same pattern, background-size: 3800px
4. Linear -- codepen extra-stop variant
linear-3800-extra -- 64 segments + green 3800px-3801px hard stop

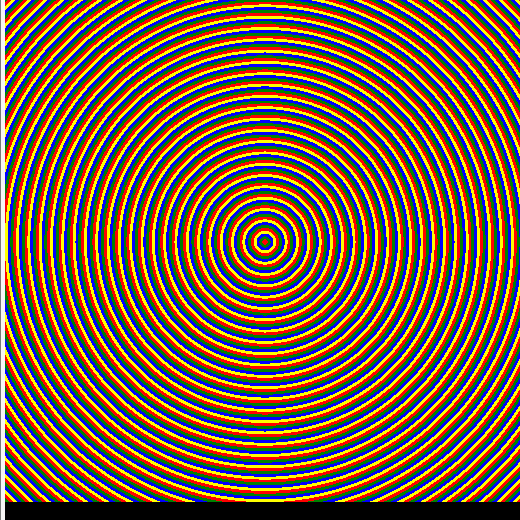

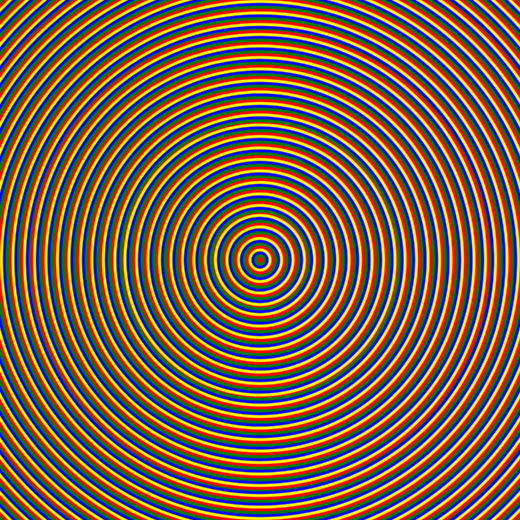

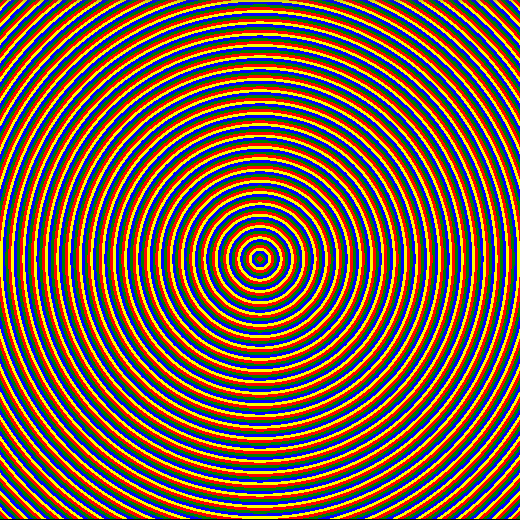

5. Radial -- 130 stops
radial-130 -- circle at center

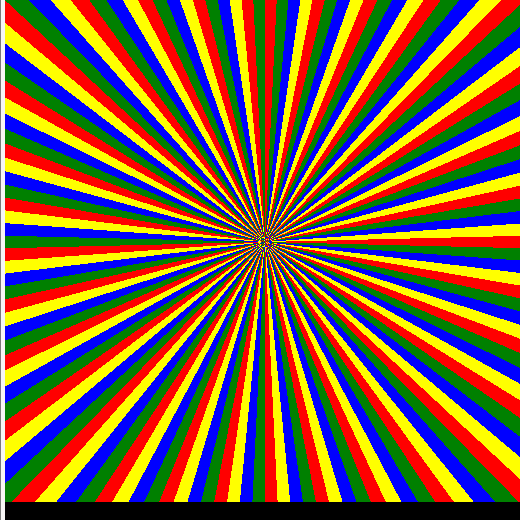

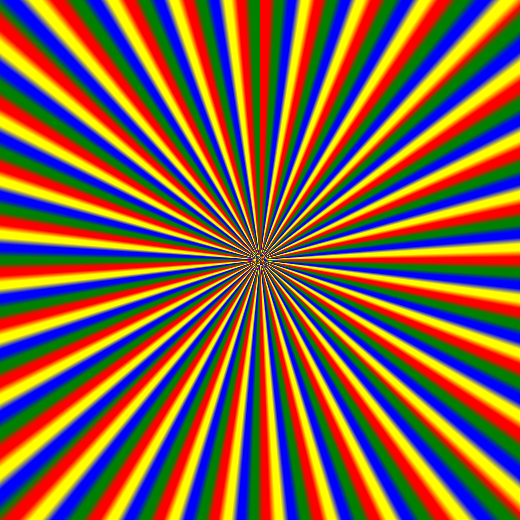

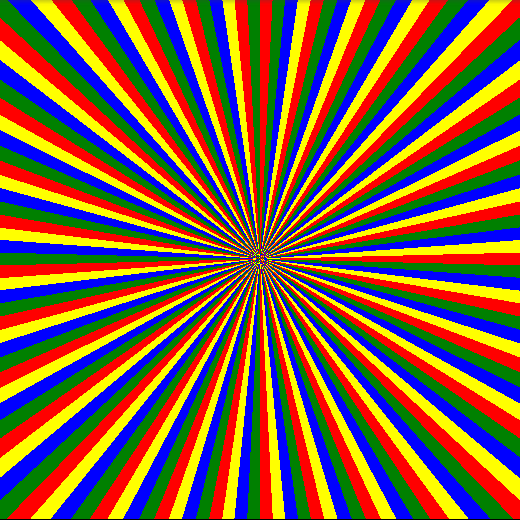

6. Conic -- 130 stops
conic-130 -- from 0deg at center
7. Reproducing locally on Linux
Linux Chrome with hardware GPU rasterization hits the Ganesh path. On a box without a real GPU, force SwiftShader Vulkan so the same code path runs:
chromium \
--user-data-dir=/tmp/i-443106929 \
--ignore-gpu-blocklist \
--enable-unsafe-swiftshader \
--enable-features=Vulkan --use-vulkan=swiftshader \
--enable-gpu-rasterization \
--disable-features=SkiaGraphite \
https://static.januschka.com/i-443106929/macOS Chrome and software-rasterization Linux Chrome render this correctly because they do not use the Ganesh many-stop fallback (Graphite has a real SSBO-backed many-stop path; software raster pipeline has no cap).
